The Ford F-250 is an iconic workhorse known for its power and versatility. However, beneath its rugged exterior lies a crucial specification that often goes unnoticed but plays a significant role in the world of customization: the Ford F-250 lug pattern. Let’s delve into the intricate details of this bolt pattern now!
In this article:
What Is The Ford F-250 Wheel Bolt Pattern?

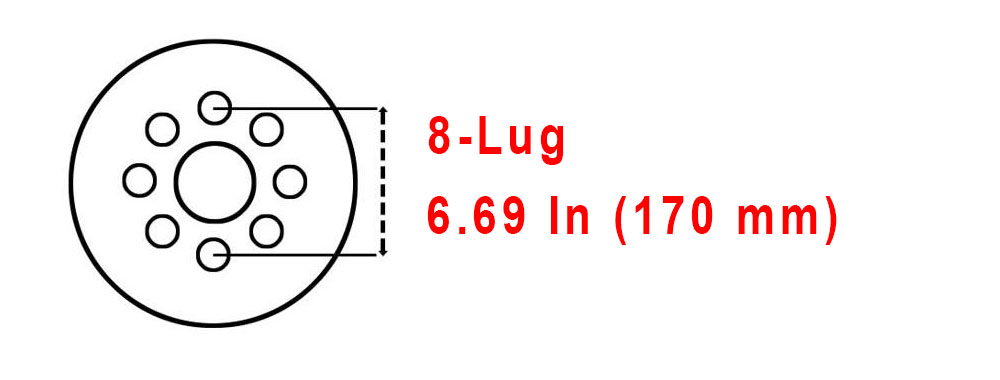

For most recent Ford F-250 models, the standard bolt pattern is 8x170mm or 8×6.69 inches. This signifies that there are eight lug holes evenly spaced around the wheel hub, and the diameter of an imaginary circle passing through these lug holes measures 170 millimeters or 6.69 inches.
The 8×170 bolt pattern offers not only a strong and stable connection but also the capability to accommodate heavier and larger wheels, a crucial feature for a truck designed for towing, hauling, and demanding off-road adventures. This exact bolt pattern is essential for ensuring a secure and accurate fit, preventing issues such as wobbling or bad alignment of the wheel.
Wheel Specs Of Ford F250 Models
Here are the essential wheel specs we have compiled from many cars coming our way at Stockton Wheel.
Ford F250 VI (1973 – 1975) & VI Facelift (1976 – 1979)
- Center bore: 124.9 mm
- Bolt pattern: 8×165.1 (8×6.5)
- Thread size: 1/2″ – 20 UNF
- Torque spec: N/A
- OE wheel size: 215/85R16.5 or 235/85R16.5
- OE rim size: 6Jx16.5 ET10
Ford F250 VII (1980 – 1986)
- Center bore: 124.9 mm
- Bolt pattern: 8×165.1 (8×6.5)
- Thread size: 1/2″ – 20 UNF
- Torque spec: N/A
- OE wheel size: 7.50R16LT, LT215/85R16, or LT235/85R16
- OE rim size: 6Jx16 ET12.7
Ford F250 VIII (1987 – 1991)
- Center bore: 124.9 mm
- Bolt pattern: 8×165.1 (8×6.5)
- Thread size: 9/16″ – 18 UNF
- Torque spec: N/A
- OE wheel size: LT215/85R16 or LT235/85R16
- OE rim size: 6Jx16 ET12.7
Ford F250 IX (1992 – 1997)
- Center bore: 124.9 mm
- Bolt pattern: 8×165.1 (8×6.5)
- Thread size: 9/16″ – 18 UNF
- Torque spec: N/A
- OE wheel size: LT215/85R16
- OE rim size: 7Jx16 ET6
Ford F250 I (PHN131) Super Duty (1999 – 2007)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 2.0
- Torque spec: N/A
- OE wheel size: LT235/85R16
- OE rim size: 7Jx16 ET6.35
Ford F250 II (P356) Super Duty (2008 – 2010)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 1.5
- Torque spec: 200 Nm
- OE wheel size: LT245/75R17 or LT265/70R17
- OE rim size: 7.5Jx17 ET40
Ford F250 III (P473) Super Duty (2011 – 2016)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 1.5
- Torque spec: 224 Nm
- OE wheel size: LT245/75R17 or LT275/65R18
- OE rim size: 7.5Jx17 ET40 or 8Jx18 ET40
Ford F250 IV (P558) Super Duty (2017 – 2020)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 1.5
- Torque spec: 224 Nm
- OE wheel size: LT245/75R17 or LT275/65R18
- OE rim size: 7.5Jx17 ET40 or 8Jx18 ET40
Ford F250 IV (P558) Super Duty Facelift (2020 – 2022)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 1.5
- Torque spec: 224 Nm
- OE wheel size: LT245/75R17, LT265/70R17, or LT275/65R18
- OE rim size: 7.5Jx17 ET40 or 8Jx18 ET40
Ford F250 V (2023 – 2024)
- Center bore: 124.9 mm
- Bolt pattern: 8×170 (8×6.69)
- Thread size: M14 x 1.5
- Torque spec: 224 Nm
- OE wheel size: LT245/75R17, LT265/70R17, LT275/70R18, LT275/65R18, LT285/75R18, or LT275/65R20
- OE rim size: N/A
Frequently Asked Questions
Do An F250 And F350 Have The Same Lug Pattern?
Some model years of Ford F-250 and F-350 have a similar lug pattern of 8×170. But not all of them are the same.
Can You Put 8×6.5 On 8×170?
Yes, it is possible to put wheels with an 8×6.5 (8×165.1) bolt pattern on a vehicle with an 8×170 bolt pattern by using a bolt pattern adapter. It serves as a bridge between the two different bolt patterns, allowing the wheels to be mounted securely.
What Wheel Sizes For F250?
Among many Ford trucks that we have worked with at Stockton Wheel, the standard rim sizes for an F-250 typically range from 17 to 20 inches in diameter, depending on the model year and trim level. The specific rim size may vary between F-250 models, so check your vehicle’s manual or the existing rims to determine the precise size.
The Bottom Line
To conclude, the Ford F-250 lug pattern in recent years is 8 x 170mm. Whether you’re planning to tackle rugged terrains, transport heavy loads, or simply stand out with a unique look, this wheel specification will suffice. Knowing the right wheel specs empowers you to choose the right wheels, ensuring safety, performance, and style.
