When it comes to customizing wheel designs or searching for the perfect replacement wheel rims, one pivotal aspect takes center stage: the bolt pattern. Among vehicle owners, the 5×127 bolt pattern ascends in popularity as a preferred choice, celebrated for its seamless fusion of style and functionality.
In this article:
What Is The 5×127 Wheel Bolt Pattern?

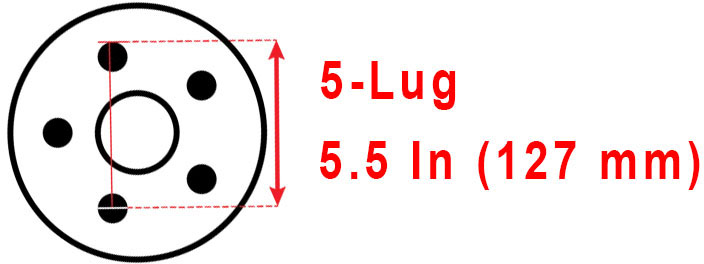

The 5×127 wheel bolt pattern, also known as 5×5 inches or 5x127mm, constitutes a configuration with 5 evenly spaced holes encircling the wheel’s hub, visualizing a circle with a 127mm (5-inch) diameter at the hub’s center.
This pattern enjoys widespread usage across various vehicles and is appreciated for its compatibility with older and newer models, harmonizing aesthetics with performance.
One significant advantage of the 5x127mm lug pattern is its adaptability. It finds application across numerous vehicle types, granting access to a broad array of wheel models within the aftermarket. Additionally, the larger lug nut holes enhance wheel security and stability.
From a stylistic perspective, the 5×127 pattern frequently translates to more room for brake components, facilitating the installation of larger, more eye-catching brakes. This empowers car owners to elevate performance while enhancing their vehicle’s visual appeal.
However, it’s worth noting that not all cars can accommodate this bolt pattern. Certain older or unconventional models may not be compatible, potentially limiting your selection of wheel designs.
Furthermore, the larger lug nut holes could occasionally compromise wheel strength, although this concern diminishes with high-quality aftermarket wheel options.
Which Vehicles Feature The 5×127 Bolt Pattern?
Here are some car models from various brands that commonly use a 5 x 127mm bolt pattern:
| Brand | Car Model | Model Year Range |
| Jeep | Grand Cherokee | 1999-2023 |
| Jeep | Wrangler | 2007-2023 |
| Jeep | Renegade | 2015-2023 |
| Dodge | Durango | 1998-2023 |
| Chrysler | 300 | 2005-2023 |
| Chrysler | Pacifica | 2017-2023 |
| Chevrolet | Impala | 2000-2023 |
| Chevrolet | Colorado | 2004-2023 |
| Chevrolet | Suburban | 2000-2023 |
| GMC | Yukon | 2000-2023 |
| GMC | Sierra | 1999-2023 |
| Cadillac | Escalade | 1999-2023 |
| Fiat | Freemont | 2011-2016 |
| Ram | 1500 | 2002-2023 |
| Ram | 2500 | 1994-2023 |
| Ram | 3500 | 1994-2023 |
| Fiat | 500X | 2014-2023 |
| Alfa Romeo | Stelvio | 2017-2023 |
| Alfa Romeo | Giulia | 2016-2023 |
| Maserati | Levante | 2016-2023 |
| Maserati | Ghibli | 2013-2023 |
| Lancia | Voyager | 2011-2015 |
| Chrysler | Aspen | 2006-2009 |
Keep in mind that this list doesn’t cover all possibilities, as there could be more car models within these brands or even from different manufacturers using the 5×127 design.
The model years also differ slightly based on trim levels or regional distinctions. It’s advisable to confirm the bolt pattern for a particular car model and year in the owner’s manual or with the dealer before making any alterations or investing in new wheels.
FAQs
Is 5×127 The Same As 5×5?
Certainly, the 5x127mm wheel bolt pattern is the same as the 5×5 pattern. These terms are used interchangeably to describe the identical configuration.
Can 5×120 Wheels Fit On A 5×127 Pattern?
No, a 5×120 wheel cannot seamlessly fit onto a vehicle equipped with a 5x127mm lug pattern without wheel adapters or necessary modifications.
These two bolt patterns are inherently incompatible due to their differing quantities of lug holes (featuring five) and distinct spacing between them (measuring 120 millimeters for 5×120 and 127 millimeters for 5×127).
To accommodate wheels with a dissimilar bolt pattern on a vehicle, you would typically necessitate hub-centric adapters or spacers, which can introduce potential safety and vehicle handling concerns. Opting for wheels expressly designed for your vehicle’s specific bolt pattern is generally advisable to ensure proper fitment and maintain safety standards.
How do I know if my rims are 5×5?
To check if your wheels have a 5×5 bolt pattern, follow these easy steps:
- Check the Rim: Examine one of your rims closely. Look for any markings, engravings, or stickers that may indicate the bolt pattern. Often, this information is imprinted on the rim.
- Consult Your Vehicle Manual: Your vehicle’s manual might contain information about the wheel specifications, including the bolt pattern. Look in the “Wheel Specifications” or a similar section.
- Online Research: You can also search for your vehicle’s make, model, and year along with “bolt pattern” on the internet. Some various websites and forums provide comprehensive lists of cars and their corresponding bolt patterns.
- Count the bolt holes: Take a look at your wheel and count how many bolt holes or studs it has. If there are five bolt holes, then you might have a 5×5 pattern.
- Measure the space between the holes: Use a measuring tape or a special tool called a bolt pattern gauge to measure the distance from the center of one hole to the center of the hole directly across from it. If this distance is 5 inches (or 127 millimeters), then you likely have a 5×5 bolt pattern.
- Consult a Professional: If you’re still unsure or want to be absolutely certain, consider taking your vehicle to a professional mechanic or a tire and wheel specialist. They can quickly and accurately determine the bolt pattern of your rims.
It’s crucial to have the correct bolt pattern information when shopping for new wheels or performing any wheel-related modifications to ensure a proper fit for your vehicle.
Conclusion
It is evident that the 5×127 wheel configuration, also recognized as the 5×5 wheel layout, adeptly balances aesthetics and functionality. Its adaptability across a spectrum of vehicle models has solidified its status as a favored choice among automotive enthusiasts.
Nonetheless, it is crucial to underscore that not all vehicles seamlessly accommodate this wheel setup, and there may be potential structural considerations when incorporating aftermarket wheel designs.
