Are all Jeep wheel bolt pattern 5x5s? The quick answer is NO. Though most come to market with this common pattern, some older models, for instance, 1st and 2nd Wrangler generations, may be installed with other designs.
That’s why it is necessary to thoroughly understand these aspects before performing car service on your own. Now dive into our article to find out the bolt pattern for Jeep Wrangler.
In this article:
Bolt Pattern For Jeep Wrangler
Jeep Wrangler models from 2007 have the same bolt pattern of 5-on-5 or 5×5″ (5×127 mm), while previous models have a 5×4.5″ (5×114.3 mm) pattern. There are 5 lug nuts on the wheel, forming a 5″- or 4.5″-diameter circle.
1987 – 2007
The first Wranglers, the YJ generation, drew inspiration from the Jeep C1-7. They become more dominant in good comfort and better handling than their processor.
In 1992, the manufacturer offered several upgrades, such as a three-speed automatic transmission or anti-lock brakes. However, they maintained a consistent wheel lug design throughout the period – 5×4.5″ or 5×114.3 mm.
This strategy continued into the 2nd generation models. In other words, the Jeep TJ bolt pattern featured 5 lug holes and an imaginary circle of 4.5″ in diameter.
On the other hand, Fiat Chrysler constantly catches up with modern features. The latecomers, for example, served an upgraded FM sound system (one cassette and four speakers).
The Sport edition even came with a CD player and a 7-speaker set. Plus, consumers approached Unlimited, Rubicon, and Sahara versions with gearbox enhancement.
2007 – 2024
2007 marked a spectacular change in Wanglers. The 3rd generation cars appeared on the market with a longer wheelbase and four-door models.
The manufacturer has also changed the factory wheels to a 5×127 mm or 5×5″ bolt pattern, along with the aesthetic improvement. In other words, the Jeep JK bolt pattern involved 5 holes and a lug circle of 127 mm in diameter.
This design has lasted until now despite other improvements. The 4th generation maintains the overall exterior styling, including the Jeep JL lug pattern, but the core technology has improved.
Improved aerodynamics and features have resulted in better fuel economy. The manufacturer also offers several engine options, such as four-cylinder or diesel.
Factory Specifications Of Jeep Wheels For Fitment Purpose
Jeep Wrangler I (YJ): 1987 – 1995
- Center bore measurement: 71.5 mm
- Thread size: 1/2″ – 20 UNF
- Wheel fasteners: Lug nuts
- Wheel tightening torque (estimated): 75 to 85 lb-ft
- Tire & rim size
| Engine Option | Tire Size | Rim Size | Bolt Pattern |
| 2.5I I4 | 205/75SR15 or 225/75SR15 | 6.5Jx15 ET25 or 7Jx15 ET25 | 5×4.5″ (5×114.3 mm) |
| 4.0I I4 or 4.2I I4 | 215/75SR15 or 235/75SR15 | 7Jx15 ET25 | 5×4.5″ (5×114.3 mm) |
Jeep Wrangler II (TJ): 1997 – 2007
- Hub center hole: 71.5 mm
- Thread size: 1/2″ – 20 UNF
- Wheel fasteners: Lug nuts
- Torque requirement (estimated): 75 to 85 lb-ft
- Tire & rim size
| Engine Option | Tire Dimensions | Rim Size | Bolt Pattern |
| 2.4I I4 or 2.5I I4 | 215/75SR15 | 6Jx15 ET – unknown or 7Jx15 ET31.75 | 5×4.5″ (5×114.3 mm) |
| 4.0I I4 | 215/75SR15 or 225/75SR15 | 7Jx15 ET31.75 | 5×4.5″ (5×114.3 mm) |
Jeep Wrangler III (JK): 2007 – 2018
- Center bore diameter: 71.5 mm
- Thread size: 1/2″ – 20 UNF
- Wheel fasteners: Lug nuts
- Proper wheel torque: 130 lb-ft
- Tire & rim size
| Engine Option | Tire Size | Rim Size | |
| 2.4I I4 (EUDM) | 215/75SR15 | 7Jx15 ET31.75 | 5×5″ (5×127 mm) |
| 2.8 CDR (EUDM) | 245/75R16, 255/75R17, or 255/70R18 | 7JJx16 ET44.45, 7.5JJx17 ET44.45, or 7.5JJx18 ET44.45 | 5×5″ (5×127 mm) |
| 3.6I I4 or 3.8I V6 (USDM) | 225/75R16, 245/75R16,255/75R17, or 255/70R18 | 7JJx16 ET50, 7JJx16 ET44.45, 7.5JJx17 ET44.45, or 7.5JJx18 ET44.45 | 5×5″ (5×127 mm) |
| 3.6 I4 or 3.8I V6 (EUDM) | 245/75R17, 255/70R18 or 245/75R17 | 7JJx16 ET44.45, 7.5JJx17 ET44.45 or 7.5JJx18 ET44.45 | 5×5″ (5×127 mm) |
| 3.8I V6 (EUDM) | 245/75R16, 255/75R17, or 255/70R18 | 7JJx16 ET44.45, 7JJx16 ET44.45, or 7JJx16 ET44.45 | 5×5″ (5×127 mm) |

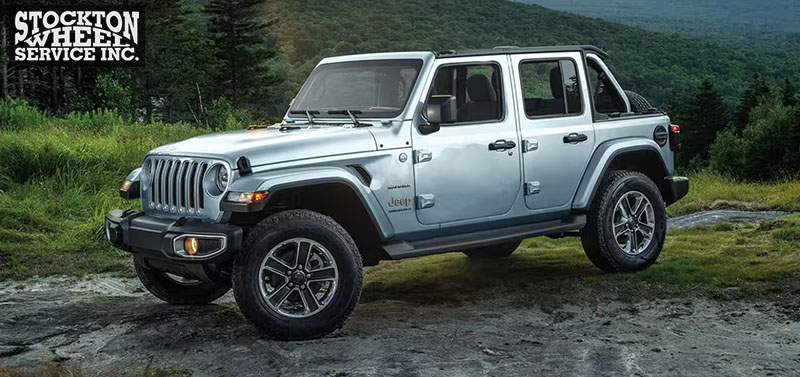

Jeep Wrangler IV (JL): 2018 – 2024
- Center bore diameter: 71.5 mm
- Thread size: M14 x 1.5
- Wheel fasteners: Lug nuts
- Wheel tightening torque: 130 lb-ft
- Tire & rim size
| Engine Option | Tire Dimensions | Rim Size | Bolt Pattern |
| 2.2 CRDI I4 or 2.0 T-GDI (EUDM) | 245/75R17, LT255/75R17, or 255/70R18 | 7.5JJx17 ET44.45 | 5×5″ (5×127 mm) |
| 2.0 Turbo PHEV (EUDM & USDM) | LT285/70R17 or 275/55R20 | 7.5JJx17 ET37.17 or 8JJx20 ET44.45 | 5×5″ (5×127 mm) |
| 2.0 Turbo I4,3.0 EcoDiesel or 3.6 Pentastar (USDM) | 245/75R17, LT255/75R17, LT285/70R17, 255/70R18, or 275/55R20 | 7.5JJx17 ET44.45, 7.5JJx17 ET37.17, or 8JJx20 ET44.45 | 5×5″ (5×127 mm) |
| 6.4 HEMI V8 | LT285/70R17 | 7.5JJx17 ET37.17 | 5×5″ (5×127 mm) |
How To Know The Jeep Wrangler Lug Pattern?
You can check the owner’s manual, as all manufacturers will specify all the car specifications there.
If you happen to lose the manual, take a look at the wheel and look for a stamp where the bolt pattern is printed.
Measuring the diameter yourself is also possible. For the 5-lug pattern on the Wrangler, you should measure from one bolt’s back from the center of the opposing bolt (there are 2 opposing bolts, and either is okay since the results are the same).
The last resort is driving to an auto store and asking the mechanic about this spec.
How to Retorque Wrangler’s Bolts
The good news for Wrangler owners is that you don’t have to struggle too much with center holes. Though there are two different patterns, working with all 5-lug wheels follows the same order. Specifically, you’d better tighten the lugs in the star shape. It is best to refer to the manufacturer’s manual for a specific visual tutorial.
What else you need for this job is a torque wrench. Approach each bolt hole in the specified order and screw a half-turn on the first round. This tip makes sense, especially when lifting the wheels with the forks. After lowering them, tighten a complete turn on all parts with a hand force equivalent to the proper torque specification.
FAQs
What Jeeps Have A 5×127 Bolt Pattern?
Several Jeep bolt patterns are 5×127, including Wrangler (2007 – now), Jeep Grand Cherokee (1999 – 2020), and Commander (2006 – 2010).
What Cars Use The 5×127 Bolt Pattern?
The 5×127 bolt construction is common on Daewoo, Dodge, Chevrolet, Cadillac, Buick, Chrysler, and Fiat vehicles.
Conclusion
Never ignore the Jeep Wrangler lug pattern if you plan for a rim or wheel size upgrade. It is best to consider the wheel specs to optimize your investment.
This information is also useful for your monthly maintenance or tire assembly, which requires you not to deviate from the accurate specifications set by the manufacturer. We hope that our article has helped you regardless of your goals.
