Have you ever paid close attention to your bolt patterns? This small detail determines your vehicle’s wheel compatibility, tire assembly, and overall performance. This also means that each model comes with a different design. While some bolt patterns are widely used, others are specific to a select group of cars. Today, delve into one of the most popular choices available: the 5×115 wheel bolt pattern.
In this article:
5×115 Bolt Pattern In Inch

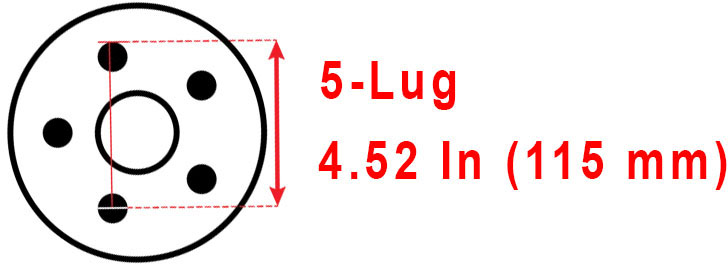

The 5x115mm pattern is also known as 5×4.52 inches. Both refer to the arrangement of lug nuts on the wheel hub but follow different units of measurement. That means 5 stud nuts form an imaginary circle with a 115mm or 4.52-inch diameter, respectively.
All bolt patterns agree on the same format: the number of lug holes x pitch circle diameter (PCD). It’s easy to count the number of studs on your wheel. So, how do we identify diameter? Manufacturers have established a standardized bolt circle measurement.
If the stud count is odd (5, in this case), the distance is calculated from the center position of a random wheel lug to the outermost edge of the farthest one. Remember that this measuring process changes when it comes to even numbers (like 4, 6, or 8).
What Cars Feature 5×115 Wheels?
The 5×115 lug pattern is commonly found on various models, especially American and European sedans, such as Buick LaCrosse, Chevrolet Impala, Chrysler 300, etc. Scroll down to learn an all-inclusive list of compatible cars.
| Brand | Model | Manufacturing Year |
| Baic | Senova X65 | 2015 – 2021 |
| Buick | Allure | 2005 -2009 |
| Century | 1982 – 2005 | |
| Cascada | 2016 – 2019 | |
| Encore | 2020 – 2021 | |
| Encore GX | 2020 – now | |
| Electra | 1985 – 1990 | |
| Envision | 2014 – 2022 | |
| Envista | 2022 – now | |
| Envista GS | 2022 – now | |
| Excelle XT | 2010 – 2016 | |
| Excelle GT | 2010 – 2015 | |
| GL6 | 2018 – 2022 | |
| GL8 | 2005 – 2017 | |
| LaCrosse | 2005 – 2009 and 2016 – now | |
| LeSabre | 1986 – 2005 | |
| Lucerne | 2005 – 2011 | |
| Park Avenue | 1991 – 2006 | |
| Regal | 1987 – now | |
| Regal TourX | 2018 – 2021 | |
| Regal GS | 2014 – now | |
| Rendezvous | 2001 – 2007 | |
| Rivera | 1986 – 1993 and 1995 – 1999 | |
| Terraza | 2005 | |
| Verano | 2011 – 2017 | |
| Cadillac | ATS | 2013 – 2019 |
| ATS-L | 2014 – 2017 | |
| Allante | 1987 – 1993 | |
| CT4 | 2020 – now | |
| CT4-V | 2020 – now | |
| CTS | 2002 – 2007 | |
| DTS | 2006 – 2011 | |
| DeVille | 1985 – 2005 | |
| Eldorado | 1986 – 2002 | |
| ELR | 2014 – 2016 | |
| Fleetwood | 1985 – 1992 | |
| Seville | 1986 – 2004 | |
| STS | 2004 – 2012 | |
| Chevrolet | Alero | 1999 – 2004 |
| Celebrity | 1982 – 1990 | |
| Captiva | 2006 – 2018 | |
| Captiva Sport | 2008 – 2017 | |
| Classic | 2004 – 2005 | |
| Cruze | 2009 – 2018 | |
| Equinox | 2005 – 2009 and 2017 – now | |
| Impala | 2000 – 2013 | |
| Impala Limited | 2014 – 2016 | |
| Lumina | 1990 – 2001 | |
| Lumina APV | 1990 – 1996 | |
| Lumina Van | 1995 – 1996 | |
| Malibu | 1997 – 2003 and 2016 – now | |
| Malibu XL | 2016 – now | |
| Monte Carlo | 1995 – 2007 | |
| Orlando | 2011 – now | |
| Seeker | 2022 – now | |
| Trans Sport | 1996 – 2005 | |
| TrailBlazer | 2019 – 2023 | |
| Uplander | 2005 | |
| Venture | 1997 – 2005 | |
| Volt | 2010 – 2015 | |
| Chrysler | 300 | 2004 – now |
| 300C | 2004 – 2021 | |
| 300C SRT-8 | 2004 – 2014 | |
| Daewoo | Winstorm | 2006 – 2010 |
| Dodge | Challenger | 2008 – now |
| Challenger SRT | 2008 – now | |
| Charger | 2005 – now | |
| Charger SRT | 2007 – now | |
| Magnum | 2004 – 2009 | |
| Magnum SRT | 2006 – 2009 | |
| GMC | Terrain | 2008 – 2010 and 2018 – 2023 |
| Holden | Astra VXR | 2015 – 2016 |
| Astra GTC | 2015 – 2016 | |
| Captiva | 2006 – 2018 | |
| Captiva 5 | 2009 – 2015 | |
| Captiva 7 | 2006 – 2018 | |
| Commodore | 2018 – 2021 | |
| Cascada | 2014 – 2017 | |
| Cruze | 2008 – 2016 | |
| Equinox | 2017 – 2021 | |
| Volt | 2012 – 2015 | |
| KIA | Amanti | 2007 – 2009 |
| Lancia | Thema | 2011 – 2014 |
| Oldsmobile | 88 | 1986 – 1999 |
| 98 | 1985 – 1996 | |
| Aurora | 1995 – 1999 and 2001 – 2003 | |
| Alera | 1998 – 2004 | |
| Cutlass | 1997 – 1999 | |
| Cutlass Supreme | 1988 – 1997 | |
| Intrigue | 1997 – 2002 | |
| LSS | 1997 – 1999 | |
| Regency | 1997 – 1998 | |
| Silhouette | 1989 – 2004 | |
| Toronado | 1986 – 1992 | |
| Opel | Antara | 2006 – 2015 |
| Ampera | 2011 – 2016 | |
| Astra | 2009 – 2017 | |
| Astra GTC | 2011 – 2018 | |
| Astra OPC | 2011 – 2018 | |
| Cabrio | 2013 – 2019 | |
| Cascada | 2013 – 2019 | |
| Insigina | 2017 – now | |
| Insignia Country Tourer | 2017 – 2019 | |
| Sintra | 1996 – 1999 | |
| Zafira | 2011 – 2019 | |
| Pontiac | 6000 | 1983 – 1991 |
| Aztek | 2001 – 2005 | |
| Bonneville | 1987 – 2005 | |
| Grand Prix | 1988 – 2008 | |
| Grand Prix GXP | 2005 – 2008 | |
| Grand Am | 1999 – 2005 | |
| Montana | 1997 – 2005 | |
| Torrent | 2005 – 2009 | |
| Trans Sport | 1989 – 1999 | |
| Saturn | Relay | 2005 – 2007 |
| Vue | 2002 – 2010 | |
| Suzuki | XL-7 | 2007 – 2009 |
| Vauxhall | Antara | 2007 – 2015 |
| Ampera | 2011 – 2015 | |
| Astra | 2009 – 2015 | |
| Astra GTC | 2011 – 2018 | |
| Astra VRX | 2012 – 2018 | |
| Cascada | 2013 – 2018 | |
| Insignia | 2017 – 2022 | |
| Insignia Country Tourer | 2017 – 2019 | |
| Sintra | 1996 – 1999 | |
| Zafira Tourer | 2011 – 2018 | |
| Weiwang | S50 | 2016 – 2017 |
FAQs
Will A 5×114.3 Bolt Pattern Fit A 5×115?
Unfortunately, no. A 5×114.3 wheel does not fit in a 5×115 one due to the difference in PCD, though both are 5-lug wheels.
How To Make A 5×120 Wheel Fit A 5×115 One?
Wheel spacers or adapters are useful if you want to switch from a 5×120 wheel to a 5×115 one, but you have to sacrifice the wheel’s performance.
Another solution is to modify the lug pattern by redrilling the holes. However, this process is costly and requires precision and expertise to ensure proper alignment and load distribution. Additionally, both methods possess potential risks, including weakened structural integrity, additional stress on components, and compromised safety.
Conclusion
As you can see from the list of cars above, the 5×115 bolt pattern is widely used. Its widespread usage and compatibility with various vehicle models make it a sought-after choice for many car enthusiasts. If you want to make any adjustments, consult a pro mechanic in advance.
