Audi Wheel Bolt/Lug Pattern (A4, A5, A6, A7, Q5, Q7…)

Whether you want to enhance performance, style, or both on your Audi, having a solid grasp of the bolt pattern is crucial. It determines the exact measurements of bolt holes on the wheel hub and the right wheels that will fit your vehicle perfectly. Dive into the complex world of Audi wheel bolt patterns and make the right choices to heighten your driving experience.

Wheel Bolt Pattern For Audi Cars

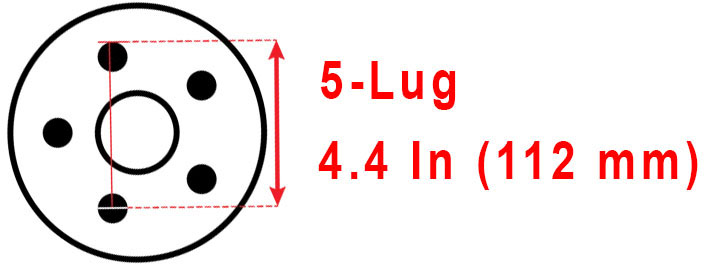

Most Audi cars feature a 5×112 bolt pattern (mm), equivalent to 5×4.4 inches. This parameter implies that five center holes form an imaginary circle with a diameter of 112 millimeters. This design is found in popular series such as Audi S4, A4, A5, A6, A7, Q5, etc.

However, there are always exceptions. For example, the Audi TT or A1 has a 5×100 mm lug pattern equivalent to 5×3.97 inches. Similar to the explanation above, this pattern includes 5 lug bolts and a pitch circle diameter of 100mm.

Another variation is the 5×130 configuration on the Audi Q7 series. Though the number of lug holes remains unchanged, the circle diameter is expanded to 130 mm, or in other words, 5.12 inches.

Bolt Pattern And Other Wheel Specs For All Audi Models

Year	Model	Bolt Pattern	Other Major Wheel Specs
2010	A1	5×100	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 125 Nm
2022	A1 All-street	5×100
2019	A1 City Carver	5×100
1996	A3	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2021	A3L	5×112
1994	A4	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque pec: 120 Nm
2009	A4 Allroad	5×112
2020	A4L	5×112
2007	A5	5×112
1994	A6	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2000	A6 Allroad	5×112
2019	A6L	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2010	A7	5×112
2022	A7L	5×112
1994	A8	5×112
2022	A8L	5×112
2019	E-TRON	5×112	– Center bore: 66.6 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2021	E-TRON GT	5×130	– Center bore: 71.6 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2020	E-TRON S	5×112	– Center bore: 66.6 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2020	E-TRON S SPORTBACK	5×112
2020	E-TRON SPORTBACK	5xx12
2016	Q2	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2019	Q2L	5×112
2019	Q2L E-TRON	5×112
2011	Q3	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2019	Q3 SPORTBACK	5×112
2021	Q4 E-TRON	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2021	Q4 SPORTBACK E-TRON	5×112
2008	Q5	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2022	Q5 E-TRON	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2021	Q5 SPORTBACK	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2018	Q5L	5×112
2021	Q5L SPORTBACK	5×112
2022	Q6	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2005	Q7	5×130	– Center bore: 71.6 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2018	Q8	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2023	Q8 E-TRON	5×112
2023	Q8 SPORTBACK E-TRON	5×112
2007	R8	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2021	RS E-TRON GT	5×130	– Center bore: 71.6 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2013	RS Q3	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2019	RS Q3 SPORTBACK	5×112
2019	RS Q8	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2011	RS3	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
1999	RS4	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: unknown
2010	RS5	5×112
2002	RS6	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2013	RS7	5×112
1999	S3	5×112 Or 5×110 (1999-2033)	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
1991	S4	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2007	S5	5×112
1994	S6	5×112
2012	S7	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: unknown
1996	S8	5×112
2021	S8L	5×112
2019	SQ2	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2012	SQ5	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 140 Nm
2021	SQ5 SPORTBACK	5×112
2016	SQ7	5×112
2019	SQ8	5×112	– Center bore: 66.5 mm – Thread size: M14 x 1.5 – Torque spec: 160 Nm
2023	SQ8 E-TRON	5×112
2023	SQ8 SPORTBACK E-TRON	5×112
1998	TT	5×112	– Center bore: 57.1 mm – Thread size: M14 x 1.5 – Torque spec: 120 Nm
2009	TT RS	5×112
2008	TT S	5×112

FAQs

What Cars Have A 5×120 Bolt Pattern?

You can find 5×120 bolt patterns on several car models, such as Acura MDX (2017-2023), BMW 2 Series (2013-2021), Honda Civic Type R (2015-2023), Cadillac XT4 (2019-2023), etc.

What Wheels Fit My Audi?

Each model is compatible with several different wheel sizes, depending on lug pattern, wheel offset, etc.

Conclusion

Audi bolt pattern is not the same for each model and year. Luckily, most are set up with the 5-hole bolt pattern, with a few exceptions. If you are unsure about your Audi wheels, consult your owner’s manual or take your vehicle to a service center for advice. Do not rush to invest in a new wheel without considering its lug pattern, as it may not fit the original structure.
