If you plan to replace your current Jeep Grand Cherokee wheel with a new one, choose carefully. In addition to rim and vehicle size, the bolt pattern plays an important role in ensuring that the wheel can fit into your vehicle.
This feature also affects the tire assembly because each design requires a different tightening torque. Did you know it all? Let’s start with the bolt pattern of this car model today.
In this article:
Jeep Grand Cherokee Lug Pattern
All Jeep Grand Cherokees featured a 5×5″ or 5×127 mm wheel bolt pattern for over 20 years from 1999, meaning 5 lug nuts arranged in a 5-inch circle. But before that, these cars’ lug pattern was 5×4.5” or 5×114.3 mm.
1993 – 1998

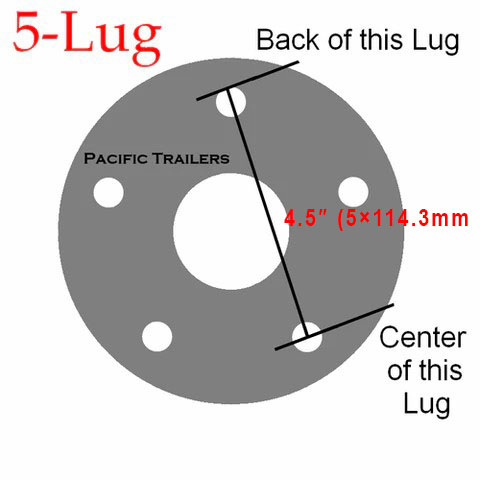

The first Grand Cherokees introduced to the market in the early 1990s were classified as mid-size SUVs. The manufacturer equipped their output with a 5×4.5″ or 5×114.3 mm lug design. In detail, each wheel served 5 lug holes and an imaginary circle around these parts with a diameter of 114.3 mm.
1999 – 2023
The late 1990s marked a new change to the bolt pattern when the second generation was born. These arrived in a unique style – a 5×5″ lug pattern or 5×127 mm. Compared to the predecessors, the latecomers maintained the number of center holes but increased the lug circle to 5 inches in diameter.
Surprisingly, the manufacturer keeps this feature until these days – through the next 4 generations of this product line. Regardless of the aesthetic, engine upgrades, or the newly released edition, the bolt pattern has stayed consistent for over 20 years.
Factory Specifications Of Cherokee Wheels For Bolt-On Fitment
Note: Those sections below will mainly focus on USDM (units for the US market).
1st Generation (ZJ): 1992 – 1998
- Hub diameter measurement: 71.5 mm
- Wheel fasteners: Lug nuts
- Thread size: 1/2″ – 20 UNF
- Wheel tightening torque: unknown
- Tire & rim size:
| Engine Choices | Tire Size | Rim Sizes | Bolt Pattern |
| 4.0I I6 and 5.2I V8 | 215/75SR15 | 7Jx15 ET25.4 | 5×4.5″ (5×114.3 mm) |
| 5.9I V8 | 225/75SR16 | 7Jx16 ET31 | 5×4.5″ (5×114.3 mm) |
2nd Generation (WJ/WG): 1999 – 2004
- Center bore: 71.5 mm
- Wheel fasteners: Lug nuts
- Thread size: 1/2″ – 20 UNF
- Wheel tightening torque: 115 – 150 Nm
- Tire & rim size:
| Engine Choices | Tire Size | Rim Sizes | Bolt Pattern |
| 4.0I I6 | 225/75SR16 or 245/70SR16 | 245/70SR16 | 5×5″ (5×127 mm) |
| 4.7I V8 | 245/70SR16 or 235/65SR17 | 7Jx16 ET50.8 or 7.5Jx17 ET50.8 | 5×5″ (5×127 mm) |
| 4.7 H.O V8 | 235/65HR17 | 235/65HR17 | 5×5″ (5×127 mm) |
3rd Generation (WK/WH): 2005 – 2010
- Center bore: 71.5 mm
- Wheel fasteners: Lug nuts
- Thread size: 1/2″ – 20 UNF
- Wheel tightening torque: 115 – 150 Nm
- Tire & rim size:
| Engine Choices | Tire Dimension | Rim Sizes | Bolt Pattern |
| 3.0 CRD (Diesel) | 245/65R17 | 7.5Jx17 ET50 | 5×5″ (5×127 mm) |
| 3.7I V6 | 235/65R17 or 245/65R17 | 7.5Jx17 ET50 | 5×5″ (5×127 mm) |
| 4.7I V8 | 235/65R17, 235/60R17, or 245/65R17 | 7.5Jx17 ET50 | 5×5″ (5×127 mm) |
| 5.7I V8 | 245/65R17 | 7.5Jx17 ET50 | 5×5″ (5×127 mm) |
| 6.1I V8 | 255/45R20 or 275/45R20 | 9Jx20 ET35 or 10Jx20 ET50 | 5×5″ (5×127 mm) |
4th Generation (WK2): 2011 – 2023
- Hub center bore: 71.5 mm
- Wheel fasteners: Lug nuts
- Thread size: M14 x 1.5
- Wheel tightening torque: 150 Nm or 176 Nm (Facelift models)
- Tire & rim size:
| Engine Choices | Tire Sizes | Rim Sizes | Bolt Pattern | |
| Pre-facelift | 5.7I V8 or 3.6I V6 (Flex-fuel) | 245/70R17, 265/60R18, or 265/50R20 | 8Jx17 ET56.4, 8Jx18 ET56.4, 8Jx20 ET56.4 | 5×5″ (5×127 mm) |
| 6.4I V8 | 295/45R20 | 10Jx20 ET50.08 | 5×5″ (5×127 mm) | |
| Facelift I | 3.0 TD (Diesel) | 265/60R18 or 265/60R18 | 265/60R18 or 8Jx20 ET56.4 | 5×5″ (5×127 mm) |
| 3.6I V6 (Flex-fuel) | 245/70R17, 265/60R18, or 265/50R20 | 8Jx17 ET56.4, 8Jx18 ET56.4, 8Jx20 ET56.4 | 5×5″ (5×127 mm) | |
| 5.7I V8 | 265/60R18 or 265/50R20 | 265/50R20 or 8Jx20 ET56.4 | 5×5″ (5×127 mm) | |
| 6.2I V8 or 6.4I V8 | 295/45R2 | 10Jx20 ET50.08 | 5×5″ (5×127 mm) | |
| Facelift II | 3.0 Ecodiesel | 265/60R18 | 8Jx18 ET56.4 | 5×5″ (5×127 mm) |
| 5.7 HEMI V8 | 265/60R18 or 265/60R18 | 8Jx18 ET56.4 or 8Jx20 ET56.4 | 5×5″ (5×127 mm) | |
| 6.2 or 6.4 HEMI V8 | 295/45R20 | 10Jx20 ET50 | 5×5″ (5×127 mm) | |
| 3.6 Pentastar (Flex-fuel) | 245/70R17, 265/60R18, or 265/50R20 | 8Jx17 ET56.4, 8Jx18 ET56.4, or 8Jx20 ET56.4 | 5×5″ (5×127 mm) |
5th Generation (WL): 2022 – Now
- Center bore measurement: 71.5 mm
- Wheel fasteners: Lug nuts
- Thread size: M14 x 1.5
- Wheel tightening torque: unknown
- Tire & rim size:
| Engine Choices | Tire Size | Rim Sizes | Bolt Pattern |
| 2.0 T4 PHEV (Hybrid) or 3.6 Pentastar (Petrol) | 265/60R18 or 265/50R20 | 8Jx18 ET50 or 8.5Jx20 ET50 | 5×5″ (5×127 mm) |
| 5.7 HEMI V8 | 275/45R21 | 9Jx21 ET50 | 5×5″ (5×127 mm) |
FAQs
What Wheels Are Interchangeable With Jeep Grand Cherokee?
Some recommended Jeep models from the same manufacturer include Jeep Wrangler JK (17-18 inches), Gladiator (17-18 inches), Wagoneer (15 inches), or Liberty KK (16-18 inches).
Will Jeep Cherokee Wheels Fit On A Grand Cherokee?
Unfortunately, NO. The Jeep Cherokee bolt pattern is different, so using these wheels for your Grand Cherokee is not a good idea.
Will Gladiator Wheels Fit Grand Cherokee?
Yes, in most cases, because they have the same bolt pattern. However, you still need to consult professional mechanics for safety installation issues.
Conclusion
Most people find the lug pattern for Jeep Grand Cherokee easy to understand because most modern models share the same design.
However, other wheel specs like rim or tire sizes are also important before buying a wheel. That’s why we have detailed what you need for your shopping. We hope our article has helped you deal with difficult technical terms.
